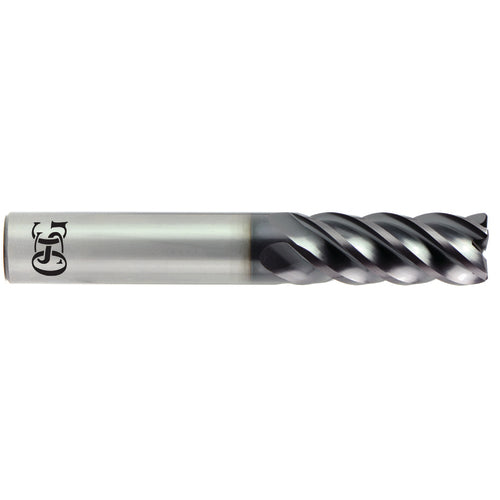

OSG USA, Inc. TP5220555002 1/2 Dia. ?1/2 Shank ?1 DOC ?3 OAL, Carbide, TiAlN, 5 Flute, Variable Helix, Round, Corner Radius, Solid End Mill Online now

Original price was: $110.62.Current price is: $27.66.

SKU: US-6988365398221 Categories: , Tag:

Description

OSG USA, Inc. TP5220555002 1/2 Dia. ?1/2 Shank ?1 DOC ?3 OAL, Carbide, TiAlN, 5 Flute, Variable Helix, Round, Corner Radius, Solid End Mill

Short Description

OSG USA, Inc. TP5220555002 1/2 Dia. נ1/2 Shank נ1 DOC נ3 OAL, Carbide, TiAlN, 5 Flute, Variable Helix, Round, Corner Radius, Solid End Mill

Full Description

Cutting Diameter (DC) 1/2″ End Shape Corner Radius
Connection Diameter Machine Side (DCONMS) 1/2″ Usable Length (LU) 1″
Depth of Cut Maximum (APMX) 1″ Corner Radius (RE) 0.03″
Overall Length (OAL) 3″ Tool Type Single-End
Cutting Edge Material Carbide Style Corner Radius
Coating AlTiN Decimal Equivalent 0.5″
Flute Count (NOF) 5 Measurement Type Inch
Flute Helix Angle (FHA) Variable Series/List # 2055
Shank Type Round Corner Radius (RE) / Chamfer Width (CHW) 0.03″
