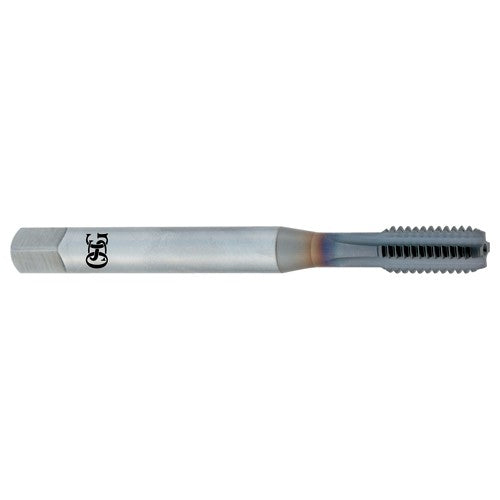

OSG USA, Inc. TP291005200408 5/16-18 Dia-H3-4 FL- VC10 TiCN-Standard Straight Flute Tap
Short Description
OSG USA, Inc. TP291005200408 5/16-18 Dia-H3-4 FL- VC10 TiCN-Standard Straight Flute Tap
Full Description
Thread Diameter Size (TDZ)
5/16″
Special Feature
DIN Length
Threads per Inch (TPI)
18
Tool Type
High Performance Tap
Thread Standard
NC
Chamfer
1.5P-2P
Overall Length (OAL)
90 mm
Coating
TiCN
Thread Cutting Part Length (THL)
1-1/8″
Flute Type
Straight
Usable Length (LU)
1.377″
End Shape
Chamfer
Connection Diameter Machine Side (DCONMS)
0.317″
Style
Standard
Flute Count (NOF)
4
Measurement Type
Inch
Applicable Material
Cast Iron | Aluminum / Non-Ferrous Materials
Series/List #
10052
Cutting Edge Material
VC10
Thread Size
5/16″ – 18
Thread Tolerance Class (TCTR)
H3
Remarks
• EXOTAP DC Bottom Taps• DIN Overall length • VC10 material to achieve high-speed tapping & long tool life• TiCN Coated• Designed for tapping cast aluminum and cast iron. Provides excellent tool life. Recommended use with synchronized spindle.
