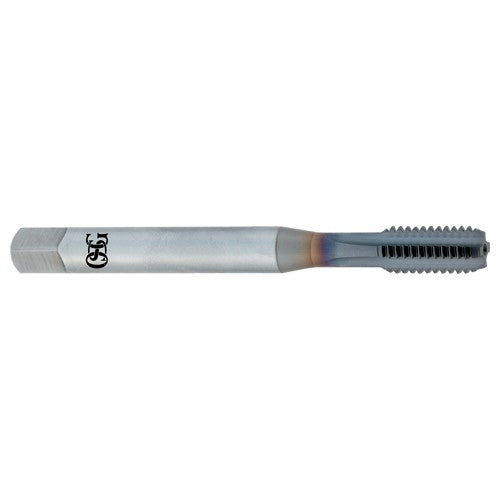

OSG USA, Inc. TP291005200308 1/4-28 4FL H3 EXOTAP DC
Short Description
OSG USA, Inc. TP291005200308 1/4-28 4FL H3 EXOTAP DC
Full Description
Thread Diameter Size (TDZ)
1/4″
Special Feature
DIN Length
Threads per Inch (TPI)
28
Tool Type
High Performance Tap
Thread Standard
NF
Chamfer
1.5P-2P
Overall Length (OAL)
80 mm
Coating
TiCN
Thread Cutting Part Length (THL)
1″
Flute Type
Straight
Usable Length (LU)
1.181″
End Shape
Chamfer
Connection Diameter Machine Side (DCONMS)
0.255″
Style
Standard
Flute Count (NOF)
4
Measurement Type
Inch
Applicable Material
Cast Iron | Aluminum / Non-Ferrous Materials
Series/List #
10052
Cutting Edge Material
VC10
Thread Size
1/4″ – 28
Thread Tolerance Class (TCTR)
H3
Remarks
• EXOTAP DC Bottom Taps• DIN Overall length • VC10 material to achieve high-speed tapping & long tool life• TiCN Coated• Designed for tapping cast aluminum and cast iron. Provides excellent tool life. Recommended use with synchronized spindle.
