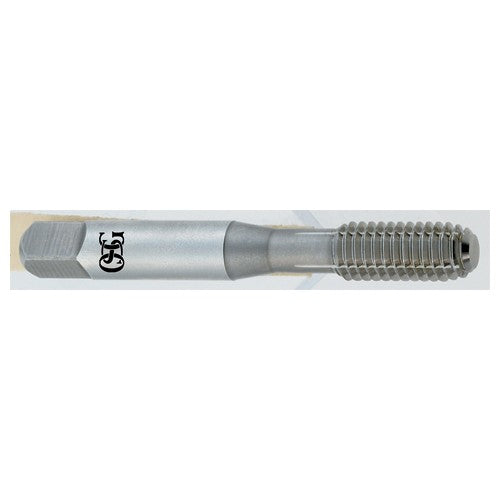

OSG USA, Inc. TP192869300 M12 1.75 Dia-6H-0 FL-HSS Bright-Bottoming Thread Forming Tap
Short Description
OSG USA, Inc. TP192869300 M12 1.75 Dia-6H-0 FL-HSS Bright-Bottoming Thread Forming Tap
Full Description
Tool Type
High Performance Tap
Coolant Supply Property (CSP)
External
Thread Diameter Size (TDZ)
M12
Chamfer
1.5P-2P
Thread Pitch (TP)
1.75 mm
Measurement Type
Metric
Overall Length (OAL)
3-3/8″
Style
Bottoming
Thread Cutting Part Length (THL)
1-21/32″
End Shape
Chamfer
Connection Diameter Machine Side (DCONMS)
0.367″
Cutting Edge Material
HSS
Flute Count (NOF)
0
Series/List #
286
Thread Standard
Metric
Thread Size
M12 x 1.75
Coating
Bright
• Metric Sizes Bottoming Style• Forming taps are manufactured with lead correction allowing uniform material formation on both sides of the flank, resulting in extended tap life. These taps are designed for stainless steels, mild steels, high silicone aluminum and aluminum alloys. Best performance Aluminum materials
