Sale!

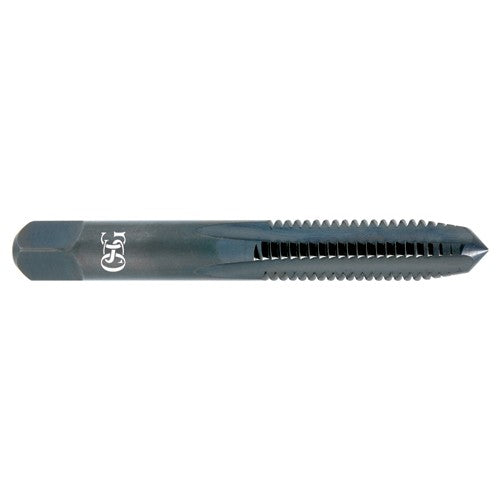

OSG USA, Inc. TP121977400 M2 0.40 Dia-D3-3 FL-Bright HSS-Bottoming Hand Tap Fashion

Original price was: $20.83.Current price is: $8.33.

SKU: US-6985474146509 Categories: , Tag:

Description

OSG USA, Inc. TP121977400 M2 0.40 Dia-D3-3 FL-Bright HSS-Bottoming Hand Tap

Short Description

OSG USA, Inc. TP121977400 M2 0.40 Dia-D3-3 FL-Bright HSS-Bottoming Hand Tap

Full Description

Thread Diameter Size (TDZ) M2 Tool Type General Purpose Tap
Thread Pitch (TP) 0.4 mm Chamfer 1.5P-2P
Thread Standard Metric Coating Bright
Overall Length (OAL) 1-3/4″ Flute Type Straight
Thread Cutting Part Length (THL) 7/16″ End Shape Chamfer
Usable Length (LU) 12 mm Style Bottoming
Connection Diameter Machine Side (DCONMS) 3.58 mm Cutting Direction (HAND) Right Hand
Flute Count (NOF) 3 Measurement Type Metric
Applicable Material Steel | Cast Iron | Aluminum / Non-Ferrous Materials Series/List # 141
Cutting Edge Material HSS Thread Size M2 x 0.4
Thread Tolerance Class (TCTR) D3

• High Speed Steel • Ground thread
