Unlock the full potential of your production line with NAAMS Base Robot Riser ARR660. Experience the precision and power with dimensions of A±3: 800mm, B: 698.4mm, and C: 430mm. The M24 X 2 hole detail and mounting system #6 make it easy to install and use. With a weight of 2791 kg, this riser is a strong and sturdy addition to any manufacturing facility.
Full Description

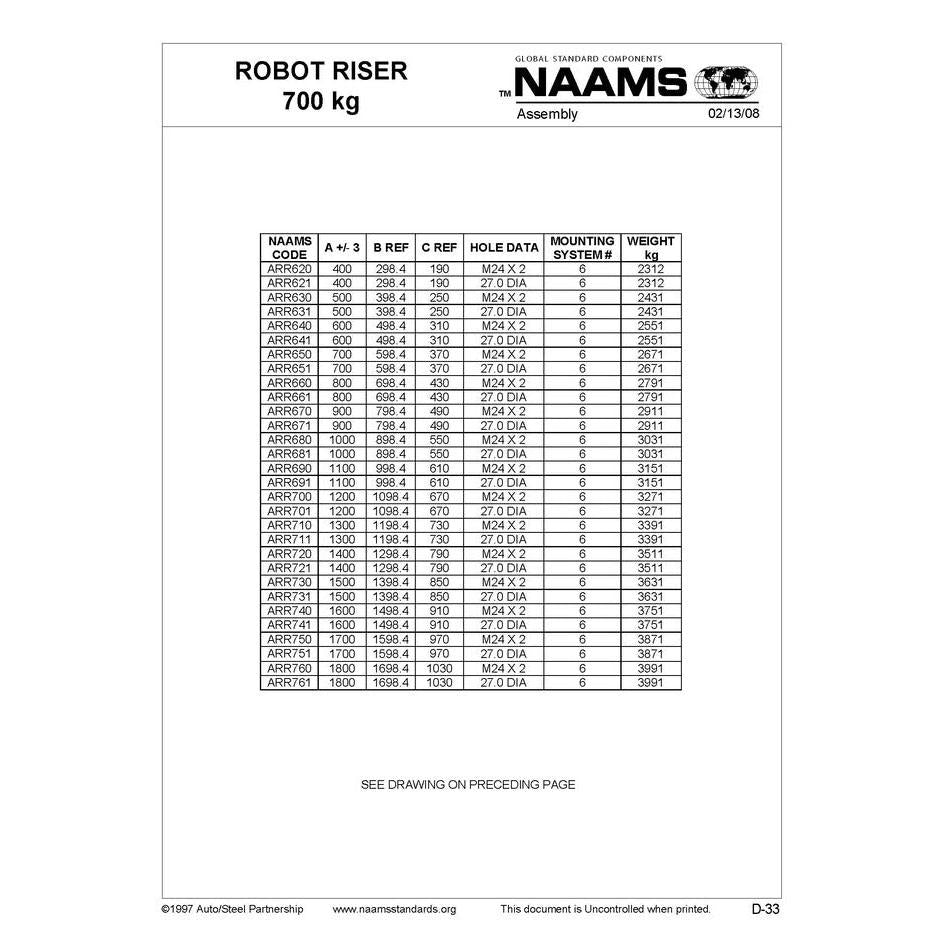

FREER NAAMS BASE ROBOT RISER ARR660
A±3: 800mm
B: 698.4mm
C: 430mm
Hole Detail: M24 X 2
Mounting System #: 6
Wt. kg: 2791
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code: ABL343 ABL643 ABL843 ABL340 ABL341 ABL440 ABL441
