Introducing the NAAMS Base Robot Riser ARR441: with impressive dimensions of 400mm A±3 and 298.4mm B, and a strong mounting system with 6 holes at 27.0 DIA. This robust base will support up to 1694 kg, making it an essential addition to any industrial robot setup. Experience ultimate stability and efficiency with the FREER NAAMS Base Robot Riser ARR441.
Full Description

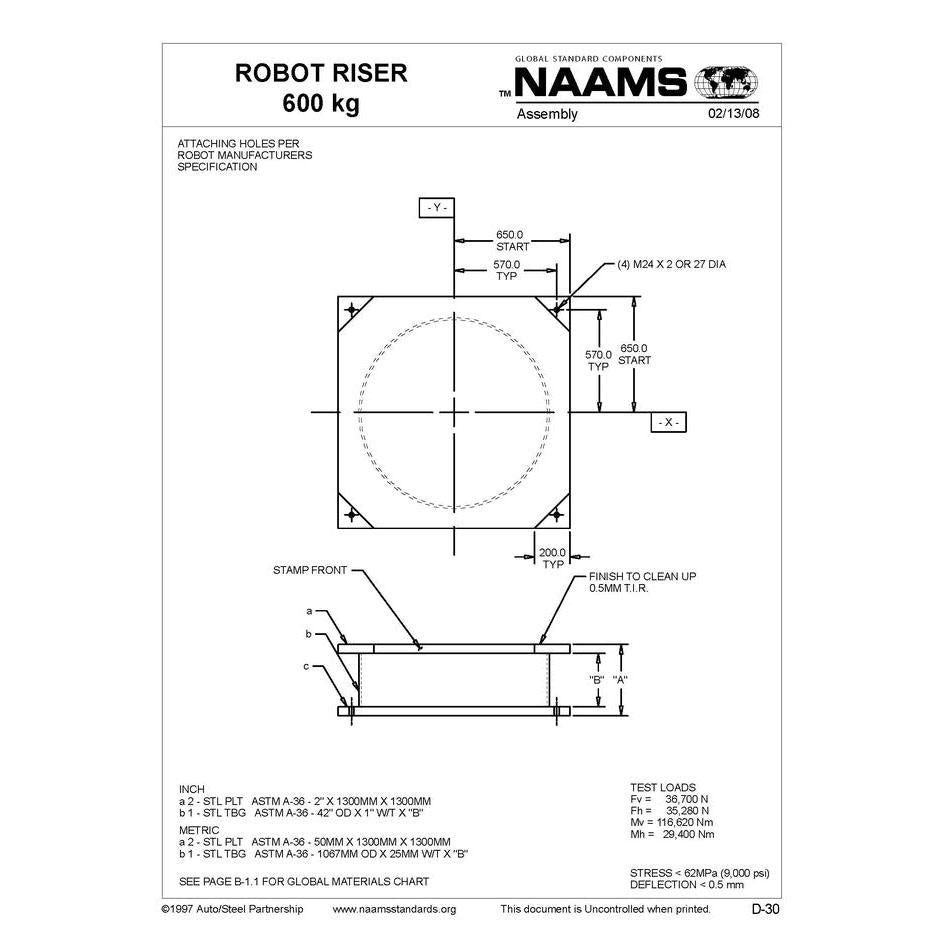

FREER NAAMS BASE ROBOT RISER ARR441
A±3: 400mm
B: 298.4mm
Hole Detail: 27.0 DIA
Mounting System #: 6
Wt. kg: 1694
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code: ABL343 ABL643 ABL843
