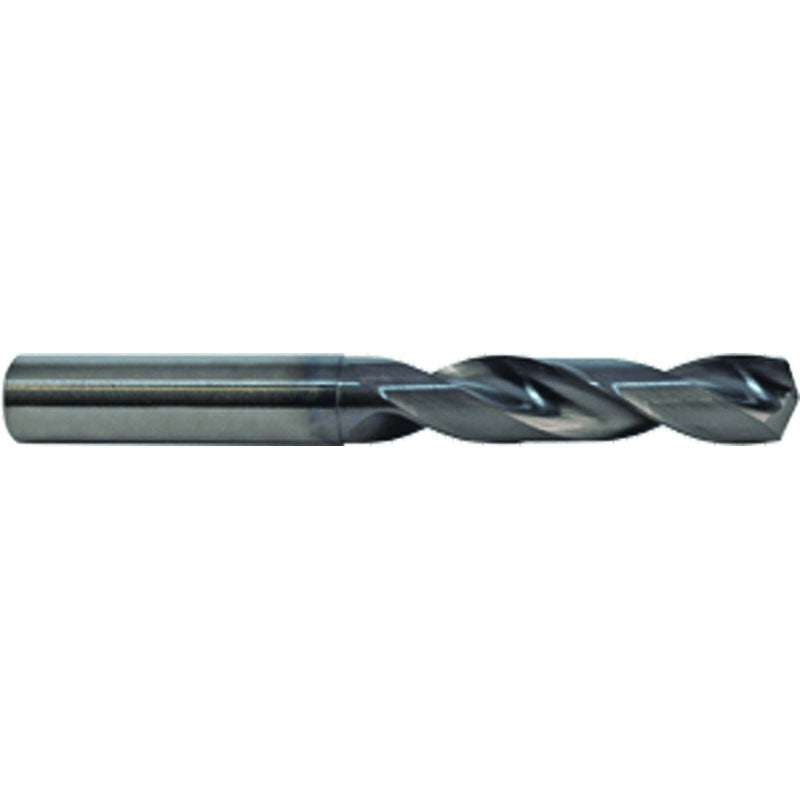

M A Ford AX2704654 1/2" Dia. x 1/2" Shank x 2.362" Flute Length x 4.213" OAL, 3xD, 142°, AlTiN, 2 Flute, Coolant Thru, Round Solid Carbide Drill on Sale
$244.88Original price was: $244.88.$61.22Current price is: $61.22.
M A Ford AX2704654 1/2" Dia. x 1/2" Shank x 2.362" Flute Length x 4.213" OAL, 3xD, 142°, AlTiN, 2 Flute, Coolant Thru, Round Solid Carbide Drill
Short Description
M A Ford 2XDCS5000A 1/2″ Dia. x 1/2″ Shank x 2.362″ Flute Length x 4.213″ OAL, 3xD, 142°, AlTiN, 2 Flute, Coolant Thru, Round Solid Carbide Drill
Full Description
Drill Bit Size / Cutting Diameter (DC)
1/2″
Shape
Solid Carbide
Drill Bit Size / Cutting Diameter (DC) – Inch
1/2″
Cutting Edge Material
Carbide
Decimal Equivalent
0.5″
Tool Type
Solid Carbide
Length Group
3xD
Measurement Type
Inch
Coating
TiAlN
Series/List #
2XDCS
Connection Diameter Machine Side (DCONMS)
1/2″
Usable Length (LU)
2.362″
Coolant Supply Property (CSP)
Coolant Thru
Length Chip Flute (LCF)
2.362″
Point Angle (SIG)
142 Degrees
Overall Length (OAL)
4.213″
Flute Helix Angle (FHA)
30 Degrees
Flute Count (NOF)
2
Shank Type
Round
Cutting Direction (HAND)
Right Hand
Family Description
Alternate Manufacture # 04654
• ALtima® (AlTiN) coated for extended tool life • Drills can be reconditioned and recoated • 142° Point angle, 30° helix angle • Recommended for a broad cross section of materials at increased feed rates
