Sale!

KIPP K0610.06 SPRING PLUNGER, HEXAGON SOCKET, SPRING FORCE, D=M06, L=15, STAINLESS STEEL, COMP:BALL CERAMIC Online Hot Sale

Original price was: $9.21.Current price is: $3.68.

SKU: US-8765652828365 Categories: , Tag:

Description

KIPP K0610.06 SPRING PLUNGER, HEXAGON SOCKET, SPRING FORCE, D=M06, L=15, STAINLESS STEEL, COMP:BALL CERAMIC
KIPP K0610.06 SPRING PLUNGER, HEXAGON SOCKET, SPRING FORCE, D=M06, L=15, STAINLESS STEEL, COMP:BALL CERAMIC

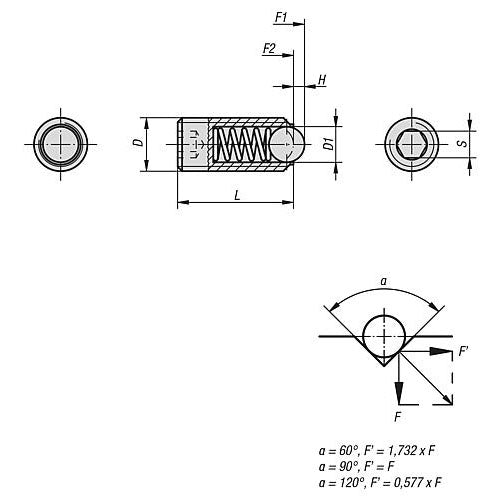

Spring Plungers with hexagon socket and ceramic ball, stainless steel
Material:

Body 1.4305. Ceramic ball Si3N4. Spring 1.4310. Type: Natural finish. Part Number Example: K0610.05 Note:

The combination of excellent material properties is a special feature of silicon nitride (Si3N4). These include, for example, high strength and stability, excellent wear and chemical resistance. Benefits:

Main Material: Stainless Steel
Item: Spring Plunger
Rohs: Yes
Pin Style: Ball
Carrier Style: Hexagon Socket
D: M6
D1: 3.5
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 9
Spring Force Final Pressure F2 Approx. N: 13
H: 1
L: 15
S: 3
