KIPP K0330.16 SPRING PLUNGER STANDARD SPRING FORCE D=M16 L=32, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5 Online Hot Sale

Original price was: $26.21.Current price is: $10.48.

SKU: US-8765622452429 Categories: , Tag:

Description

KIPP K0330.16 SPRING PLUNGER STANDARD SPRING FORCE D=M16 L=32, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5
KIPP K0330.16 SPRING PLUNGER STANDARD SPRING FORCE D=M16 L=32, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5
Spring Plungers with thread lock, pin style, hexagon socket, stainless steel body and plastic pin, standard end pressure, metric

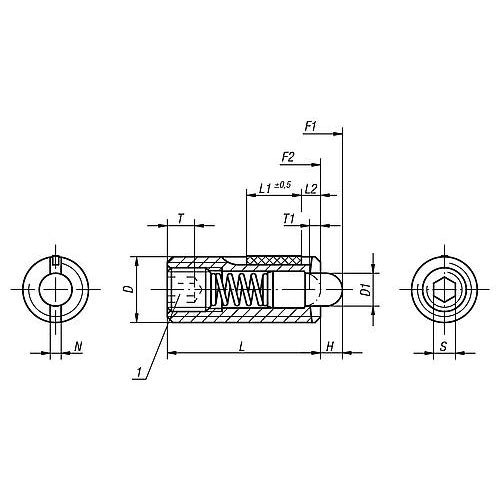

Material: body 1.4305 (AISI 303 equivalent). Thrust pin POM. Spring 1.4310 (AISI 301 equivalent) wire LONG-LOK thread lock Nylon. Type: Bright. Drawing reference: L2 = ca. two full threads 1) grub screw glued-in

Main Material: Stainless Steel
Item: Spring Plunger
Packaging Unit: 5
Pin Style: Thrust Pin
Carrier Style: Hexagon Socket
Loosening Torque Approx. Nm: 3
D: M16
D1: 7.5
Tightening Torque Approx. Nm: 3.9
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 38
Spring Force Final Pressure F2 Approx. N: 85
H: 5
L: 32
L1: 14
N: 2.5
S: 5
T: 6
T1: 2.5
