KIPP K0323.108 SPRING PLUNGER LIGHT SPRING FORCE, WITH THREAD LOCK D=M08 L=16, STEEL, COMP:PIN STEEL, PU=10 Online

Original price was: $3.70.Current price is: $1.48.

SKU: US-8765600956621 Categories: , Tag:

Description

KIPP K0323.108 SPRING PLUNGER LIGHT SPRING FORCE, WITH THREAD LOCK D=M08 L=16, STEEL, COMP:PIN STEEL, PU=10
KIPP K0323.108 SPRING PLUNGER LIGHT SPRING FORCE, WITH THREAD LOCK D=M08 L=16, STEEL, COMP:PIN STEEL, PU=10

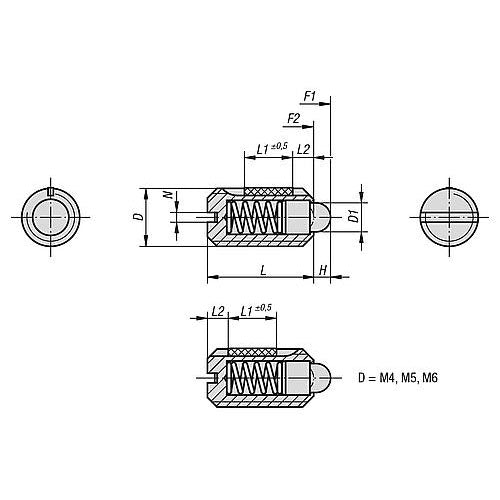

Spring Plungers with thread lock, pin style, slotted, steel, light end pressure, metric
Material: Body in steel quality class 5.8. Pressure pin in steel. Spring steel class D. LONG-LOK thread system nylon. Type: Black oxide finish. Pressure pin hardened. L2 = approx. 2x thread pitch

Main Material: Steel
Version 1: With Thread Lock
Item: Spring Plunger
Rohs: Yes
Packaging Unit: 10
Pin Style: Thrust Pin
Carrier Style: Slot
Loosening Torque Approx. Nm: 0.38
D: M8
D1: 4
Tightening Torque Approx. Nm: 1.1
Spring Strength: Light
Spring Force Initial Pressure F1 Approx. N: 7
Spring Force Final Pressure F2 Approx. N: 15
H: 2
L: 16
L1: 8
N: 1.2
