Sale!

KIPP K0322.AG SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=8-36 L=9, STAINLESS STEEL, COMP:BALL STAINLESS STEEL, PU=10 Fashion

Original price was: $5.88.Current price is: $2.35.

SKU: US-8765600792781 Categories: , Tag:

Description

KIPP K0322.AG SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=8-36 L=9, STAINLESS STEEL, COMP:BALL STAINLESS STEEL, PU=10
KIPP K0322.AG SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=8-36 L=9, STAINLESS STEEL, COMP:BALL STAINLESS STEEL, PU=10
Spring Plungers with thread lock ball style, slotted, stainless steel, standard end pressure, inch

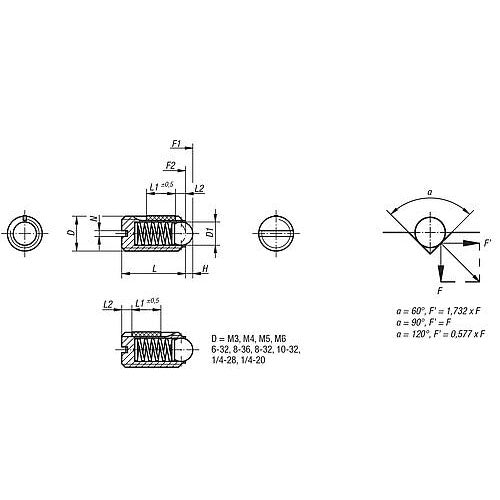

Material: body 1.4305 (AISI 303 equivalent). Ball 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). LONG-LOK thread lock, Nylon. Type: Bright. Ball hardened. Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch

Main Material: Stainless Steel
Version 1: With Thread Lock
Item: Spring Plunger
Packaging Unit: 10
Pin Style: Ball
Carrier Style: Slot
Loosening Torque Approx. Nm: 0.12
D: 8-36
D1: 2.5
Tightening Torque Approx. Nm: 0.18
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 4
Spring Force Final Pressure F2 Approx. N: 10
H: 0.8
L: 9
L1: 5
N: 0.6
