KIPP K0321.A6 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=5/8-11 L=24, STEEL, COMP:BALL STEEL, PU=5 Fashion

Original price was: $10.24.Current price is: $4.10.

SKU: US-8765599482061 Categories: , Tag:

Description

KIPP K0321.A6 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=5/8-11 L=24, STEEL, COMP:BALL STEEL, PU=5
KIPP K0321.A6 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=5/8-11 L=24, STEEL, COMP:BALL STEEL, PU=5
Spring Plungers with thread lock ball style, slotted, steel, standard end pressure, inch

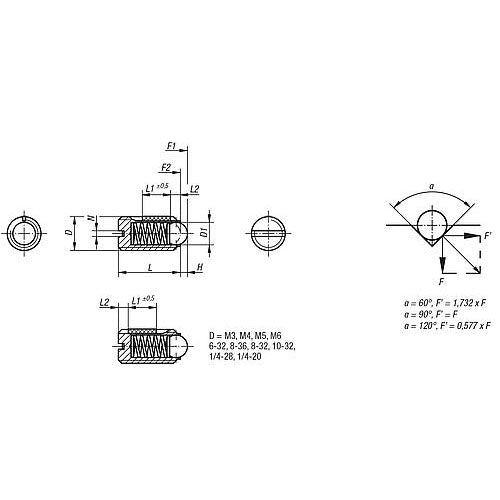

Material: Body steel quality class 5.8. Ball steel. Spring Class D steel wire. LONG-LOK thread lock Nylon. Type: Black oxide finish. Ball hardened. Part Number Example: K0321.AD Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch

Main Material: Steel
Version 1: With Thread Lock
Item: Spring Plunger
Rohs: Yes
Packaging Unit: 5
Pin Style: Ball
Carrier Style: Slot
Loosening Torque Approx. Nm: 2.95
D: 5/8-11
D1: 10
Tightening Torque Approx. Nm: 3.95
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 65
Spring Force Final Pressure F2 Approx. N: 125
H: 3.5
L: 24
L1: 14
N: 2.5
