KIPP K0320.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STAINLESS STEEL, COMP:PIN POM Hot on Sale

Original price was: $9.46.Current price is: $3.78.

SKU: US-8765597548749 Categories: , Tag:

Description

KIPP K0320.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STAINLESS STEEL, COMP:PIN POM
KIPP K0320.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STAINLESS STEEL, COMP:PIN POM
Spring Plungers pin style, hexagon socket, stainless steel body, plastic pin, standard end pressure, inch

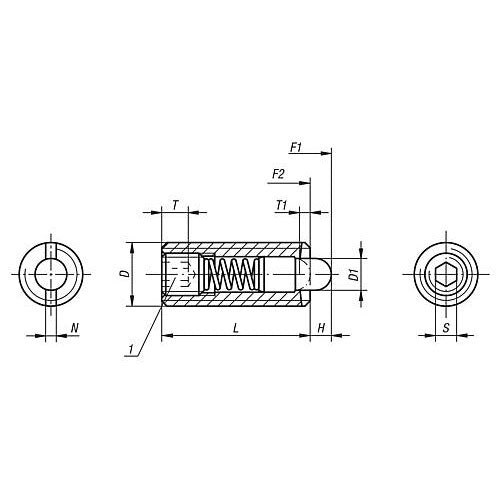

Material: body 1.4305 (AISI 303 equivalent). Thrust pin POM. Spring 1.4310 (AISI 301 equivalent). Type: Bright. Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in

Main Material: Stainless Steel
Item: Spring Plunger
Rohs: No
Pin Style: Thrust Pin
Carrier Style: Hexagon Socket
D: 10-32
D1: 2.4
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 5
Spring Force Final Pressure F2 Approx. N: 17
H: 2.3
L: 18
N: 0.8
S: 1/16
T: 2
T1: 0.8
