Sale!

KIPP K0319.A5 SPRING PLUNGER STANDARD SPRING FORCE D=1/2-13 L=28, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5 Discount

Original price was: $15.76.Current price is: $6.30.

SKU: US-8765597024461 Categories: , Tag:

Description

KIPP K0319.A5 SPRING PLUNGER STANDARD SPRING FORCE D=1/2-13 L=28, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5
KIPP K0319.A5 SPRING PLUNGER STANDARD SPRING FORCE D=1/2-13 L=28, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5
Spring Plungers pin style, hexagon socket, stainless steel body and pin, standard end pressure, inch

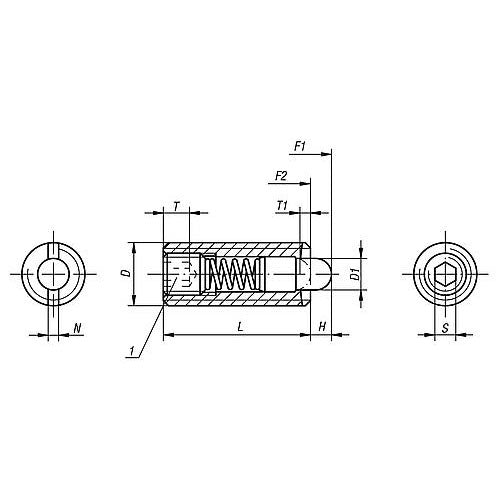

Material: body 1.4305 (AISI 303 equivalent). Thrust pin 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). Type: Bright. Thrust pin hardened. Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in

Main Material: Stainless Steel
Item: Spring Plunger
Packaging Unit: 5
D: 1/2-13
D1: 6
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 10
Spring Force Final Pressure F2 Approx. N: 47
H: 4
L: 28
N: 2
S: 5/32
T: 5
T1: 2
