Sale!

KIPP K0317.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STEEL, COMP:PIN STEEL, PU=25 Supply

Original price was: $4.55.Current price is: $1.82.

SKU: US-8765594534093 Categories: , Tag:

Description

KIPP K0317.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STEEL, COMP:PIN STEEL, PU=25
KIPP K0317.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STEEL, COMP:PIN STEEL, PU=25
Spring Plungers pin style, hexagon socket, steel pin, standard end pressure, inch

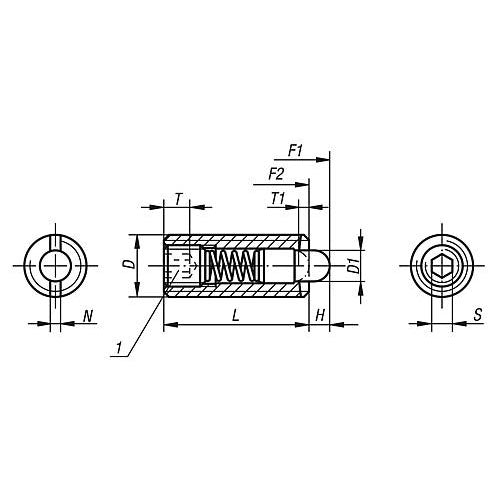

Material: body steel grade 5.8. Thrust pin steel. Spring steel wire grade D. Type: Black oxidized. Thrust pin hardened. Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in

Main Material: Steel
Item: Spring Plunger
Rohs: Yes
Packaging Unit: 25
D: 10-32
D1: 2.4
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 6
Spring Force Final Pressure F2 Approx. N: 20
H: 2.3
L: 18
N: 0.8
S: 1/16
T: 2
T1: 0.8
