Description

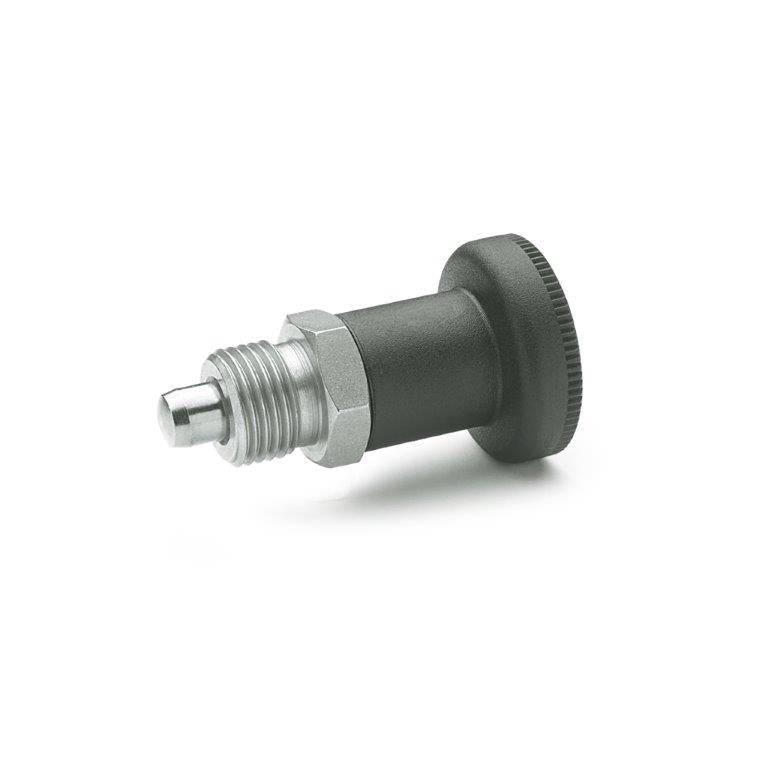

JW WINCO GN607.1-8-A-ST SHORT INDEXING PLUNGER – L87/A

Short Description

JW WINCO GN607.1-8-A-ST SHORT INDEXING PLUNGER – L87/A
GN 607.1 indexing plungers with lock-out position are used for such applications where the plunger has to stay in its retracted position.
Knob Material: Plastic
Body: Steel
Steel Plunger Pin
Thread: M16
GN607.1 Standard Sheet

*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
**Please contact [email protected] for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

---

Full Description

JW WINCO GN607.1-8-A-ST SHORT INDEXING PLUNGER – L87/A

GN 607.1 indexing plungers with lock-out position are used for such applications where the plunger has to stay in its retracted position.

Knob Material: Plastic

Body: Steel

Plunger Pin: Steel

Thread: M16

Locking: Lock-Out

Lock Nut: none

Plunger Dia.: 8 mm

Knob Dia.: 31 mm

Plunger Length: 8 mm

Overall Length: 54 mm

Initial Load: 15 N

End Load: 29 N

Axial Load: 500 N

GN607.1 Standard Sheet

*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
